4.1. How to save Orbbec SDK v2 log

This guide explains how to save logs from OrbbecViewer and Orbbec SDK v2 applications on both Windows and Linux.

4.1.1. How to save logs using OrbbecViewer

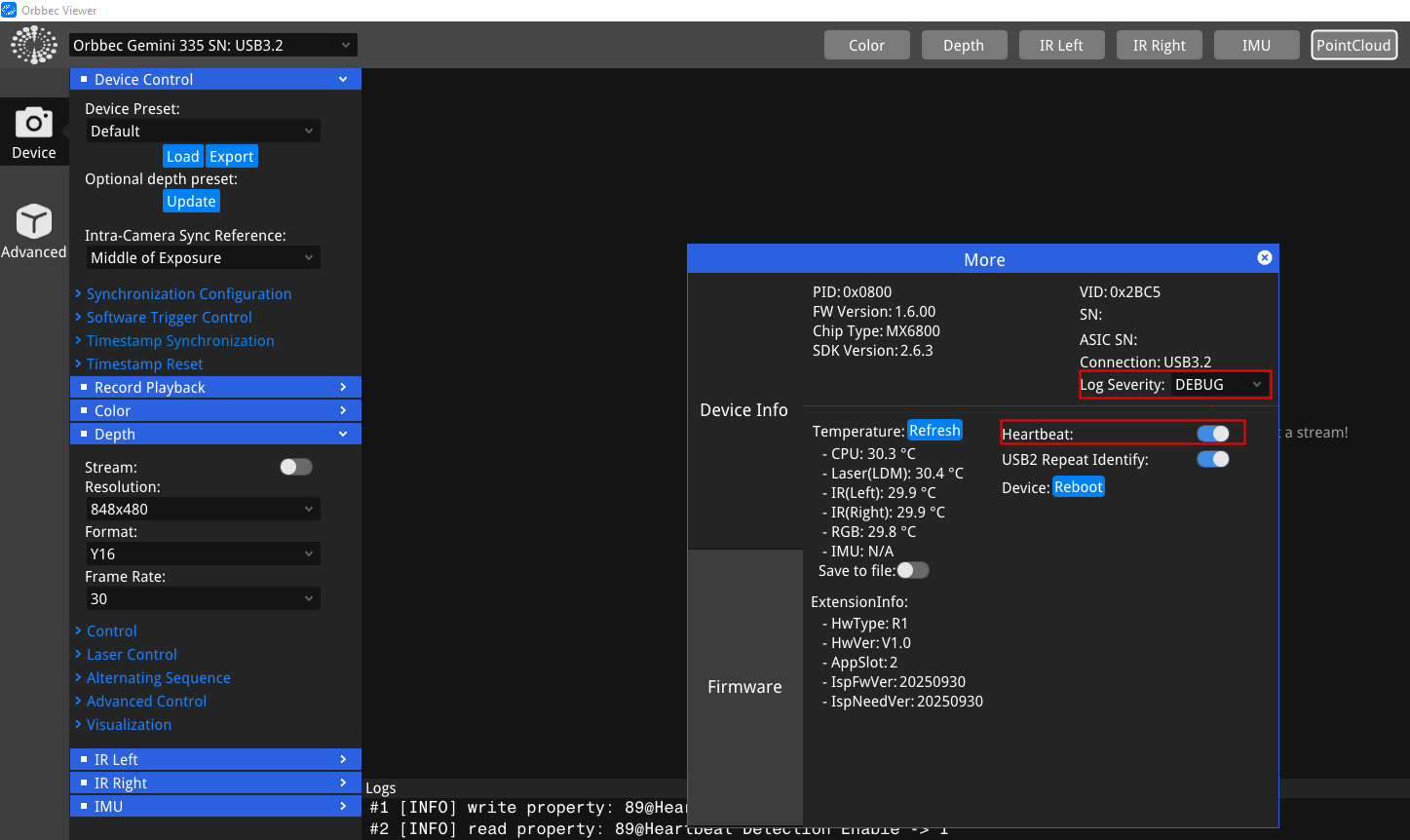

First, set the log level to Debug. To enable device firmware logs,check the Heartbeat option.

Logs are saved in the Log folder located in the same directory as OrbbecViewer.

Note: If the SDK is installed via the installer, the logs are saved in the Log directory alongside OrbbecViewer in the installation path.

4.1.1.1. windows

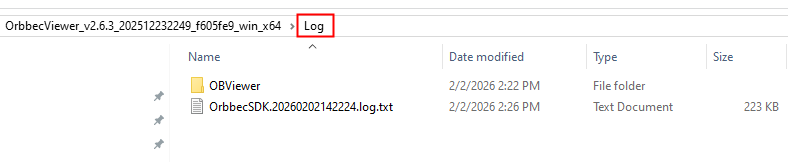

On Windows, the log path is as follows:

4.1.1.2. Linux (x64/ARM64)

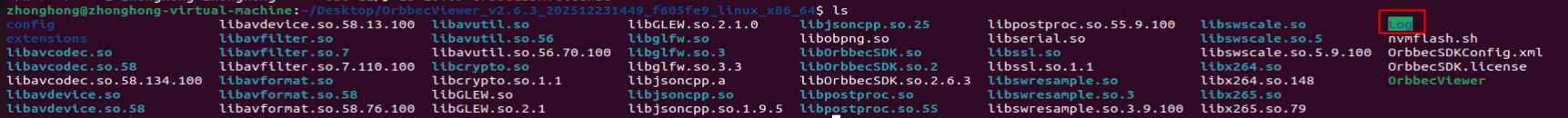

On Linux (x64/ARM64), the log path is as follows:

4.1.2. How to save logs in an Orbbec SDK v2 application

4.1.2.1. windows

Copy OrbbecSDKConfig.xml to the same directory as OrbbecSDK.dll.

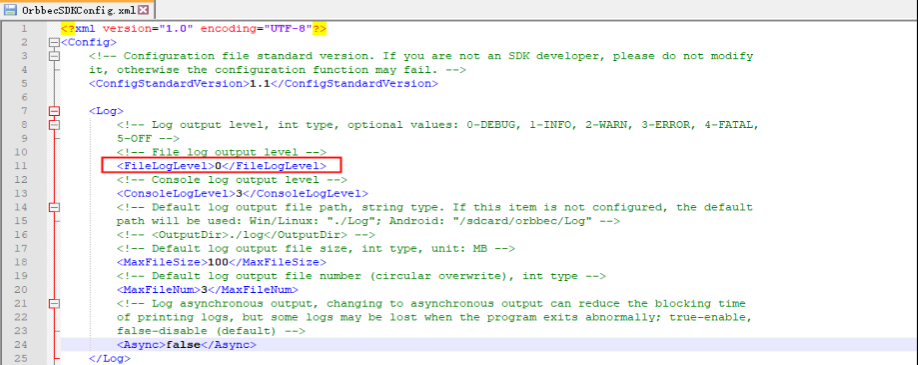

Set File Log level to 0 (Debug).

To enable firmware logging, set DefaultHeartBeat to 1 in the corresponding device section. Example for Gemini 335Le:

    <Gemini335Le>
        <!-- Whether to enable heartbeat by default -->
            <DefaultHeartBeat>1</DefaultHeartBeat>
    </Gemini335Le>

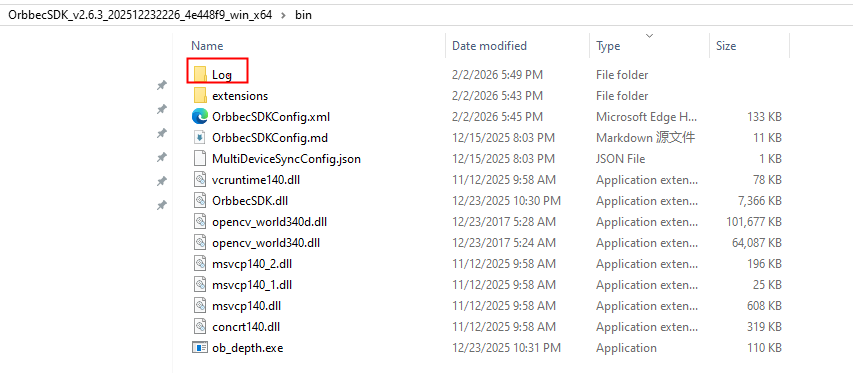

Logs are stored in the Log folder alongside the application. For example:

4.1.2.2. Linux (x64/ARM64)

Copy OrbbecSDKConfig.xml to the same directory as libOrbbecSDK.so.

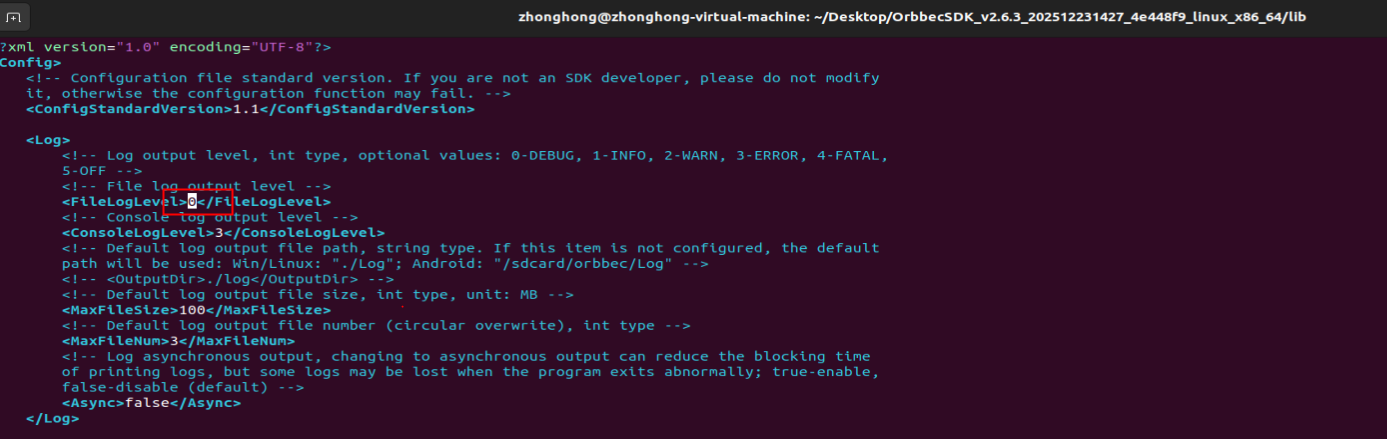

Set File Log level to 0 (Debug).

Enable firmware logging by setting DefaultHeartBeat to 1 in the device section. Example for Gemini 335Le:

    <Gemini335Le>
        <!-- Whether to enable heartbeat by default -->
            <DefaultHeartBeat>1</DefaultHeartBeat>
    </Gemini335Le>

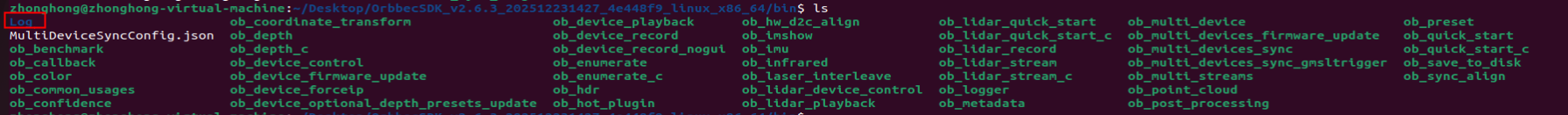

Logs are stored in the Log folder alongside the application. For example:

4.2. How to increase the usbfs memory limit

Linux Computer: USB Buffer Configuration on Ubuntu: By default, Linux-based hosts allocate only 16 MB of kernel memory for USB controller operations. This allocation may be insufficient for handling high-resolution images or multiple streams and devices. To support multiple devices, the USB controller requires more memory. Follow these steps to increase the memory allocation:

echo 128 | sudo tee /sys/module/usbcore/parameters/usbfs_memory_mb

For making this change permanent:

Open /etc/default/grub file,Find and replace

GRUB_CMDLINE_LINUX_DEFAULT="quiet splash"

with this

GRUB_CMDLINE_LINUX_DEFAULT="quiet splash usbcore.usbfs_memory_mb=128"

Update grub

sudo update-grub

Reboot and check

cat /sys/module/usbcore/parameters/usbfs_memory_mb
