C++ Sample: 3.advanced.multi_devices_sync

Overview

This sample demonstrates multi-device synchronization. It supports network devices, USB devices, and GMSL devices (such as Gemini 335Lg).

Code Overview

1. Load the sync configuration

The sample reads ./MultiDeviceSyncConfig.json from the current working directory and applies the sync config to each matched device:

    loadConfigFile();
    configMultiDeviceSync();  // device->setMultiDeviceSyncConfig(config->syncConfig);

2. Conduct multi-device testing

    testMultiDeviceSync(headless);

2.1 Distinguishing secondary devices

        // Query the list of connected devices
        auto devList  = context.queryDeviceList();
        int  devCount = devList->deviceCount();
        for(int i = 0; i < devCount; i++) {
            streamDevList.push_back(devList->getDevice(i));
        }

        // Traverse the device list, start secondary devices first, then the primary device
        std::vector<std::shared_ptr<ob::Device>> primary_devices;
        std::vector<std::shared_ptr<ob::Device>> secondary_devices;
        for(auto dev: streamDevList) {
            auto config = dev->getMultiDeviceSyncConfig();
            if(config.syncMode == OB_MULTI_DEVICE_SYNC_MODE_PRIMARY) {
                primary_devices.push_back(dev);
            }
            else {
                secondary_devices.push_back(dev);
            }
        }

2.2 Enable secondary devices, then the primary device

        startDeviceStreams(secondary_devices, 0);
        startDeviceStreams(primary_devices, static_cast<int>(secondary_devices.size()));

2.3 Start the multi-device time synchronization function

        for(const auto &device: streamDevList) {
            try {
                device->timerSyncWithHost();
            }
            catch(const ob::Error &e) {
                std::cerr << "Sync device clock failed: " << e.what() << std::endl;
            }
        }

2.4 Software Triggering Mode

Set the device synchronization mode to OB_MULTI_DEVICE_SYNC_MODE_SOFTWARE_TRIGGERING; after the stream is opened, the device waits for the trigger command from the host. The number of frames captured per trigger is configured through framesPerTrigger. The method for triggering images:

auto multiDeviceSyncConfig = dev->getMultiDeviceSyncConfig();
if(multiDeviceSyncConfig.syncMode == OB_MULTI_DEVICE_SYNC_MODE_SOFTWARE_TRIGGERING)
{
    dev->triggerCapture();
}

Press T in the preview window to trigger a capture once; press S to sync device clocks.

Configuration File Parameter Description

Note: The configuration parameters for multi-device sync may vary between devices. Please refer to the Multi-device Sync documentation.

{
    "heartbeatEnable": false,
    "devices": [
        {
            "sn": "CP2194200060",
            "syncConfig": {
                "syncMode": "OB_MULTI_DEVICE_SYNC_MODE_PRIMARY",
                "depthDelayUs": 0,
                "colorDelayUs": 0,
                "trigger2ImageDelayUs": 0,
                "triggerOutEnable": true,
                "triggerOutDelayUs": 0,
                "framesPerTrigger": 1
            },
            "streamConfig": {
                "depth": {
                    "width": 640,
                    "height": 480,
                    "fps": 30,
                    "format": "OB_FORMAT_Y16"
                },
                "color": {
                    "width": 640,
                    "height": 480,
                    "fps": 30,
                    "format": "OB_FORMAT_MJPG"
                }
            }
        }
    ]
}

Field descriptions:

Field Type Required Description
heartbeatEnable bool No Global toggle applied to every device via device->enableHeartbeat(); default false
sn string Yes Device serial number, used to match connected devices. Can be found using the OrbbecViewer tool or in the program log after connecting devices
syncConfig.syncMode string Yes Sync mode, see table below for available values
syncConfig.depthDelayUs int Yes IR/Depth/ToF trigger signal input delay (microseconds). Default 0; see the series-specific sync documentation for recommended per-device delay values
syncConfig.colorDelayUs int Yes RGB trigger signal input delay (microseconds), typically 0
syncConfig.trigger2ImageDelayUs int Yes Delay from trigger signal input to image capture (microseconds), typically 0
syncConfig.triggerOutEnable bool Yes Device trigger signal output enable switch. With a star hub: enable on the primary device only. With a daisy-chain hub: enable on the primary and all secondary devices. Forcibly set to true in PRIMARY mode
syncConfig.triggerOutDelayUs int Yes Device trigger signal output delay (microseconds), typically 0
syncConfig.framesPerTrigger int Yes Number of frames captured per trigger, only effective in software and hardware trigger modes
streamConfig object No Stream profile overrides; omit the whole section to use the SDK default profile
streamConfig.depth / streamConfig.color object No Per-sensor profile request. Each field is optional: width, height, fps (0 = not specified), format (empty = not specified, e.g. "OB_FORMAT_Y16", "OB_FORMAT_MJPG"). Unspecified fields match any value; stream start fails if the device has no matching profile

Note: All devices must be configured with the same frame rate for each stream type. Multi-device frame grouping and pairing rely on a consistent frame interval; mixing frame rates across devices will lead to inaccurate synchronization and analysis results.

syncMode available values:

Mode Description
OB_MULTI_DEVICE_SYNC_MODE_PRIMARY Primary mode, outputs sync trigger signal
OB_MULTI_DEVICE_SYNC_MODE_SECONDARY Secondary mode, receives trigger signal
OB_MULTI_DEVICE_SYNC_MODE_SOFTWARE_TRIGGERING Software trigger mode, PC controls capture timing
OB_MULTI_DEVICE_SYNC_MODE_HARDWARE_TRIGGERING Hardware trigger mode, triggered by external hardware signal
OB_MULTI_DEVICE_SYNC_MODE_SECONDARY_SYNCED Secondary synced variant, starts capturing immediately, auto-aligns when trigger signal is received

There are three common synchronization configuration methods for network devices and USB devices.

Run the Sample

On startup, the sample prints a menu:

Keyboard shortcuts (preview window):

Key Function
S Sync device clocks
T Software trigger capture
ESC Stop streaming and exit

Headless mode: run without the OpenCV preview window, suitable for remote sessions (SSH) or headless servers:

./ob_multi_devices_sync --headless

Timestamp recording and sync monitor output run exactly as in normal mode. Press Ctrl+C to stop: the program catches SIGINT, flushes all CSV data, and shuts down streams before exiting.

Windows

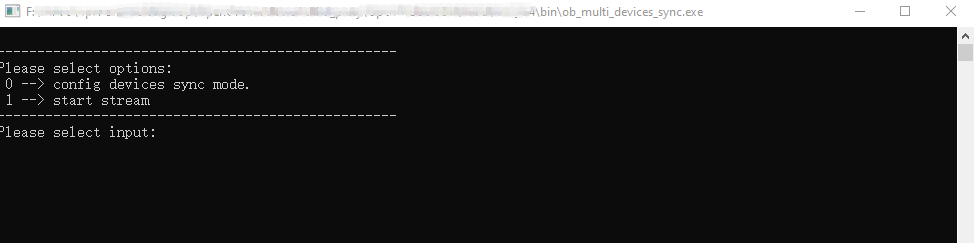

The following demonstrates how to use the multi-device synchronization sample on Windows with the Gemini 335L.

windows_sync

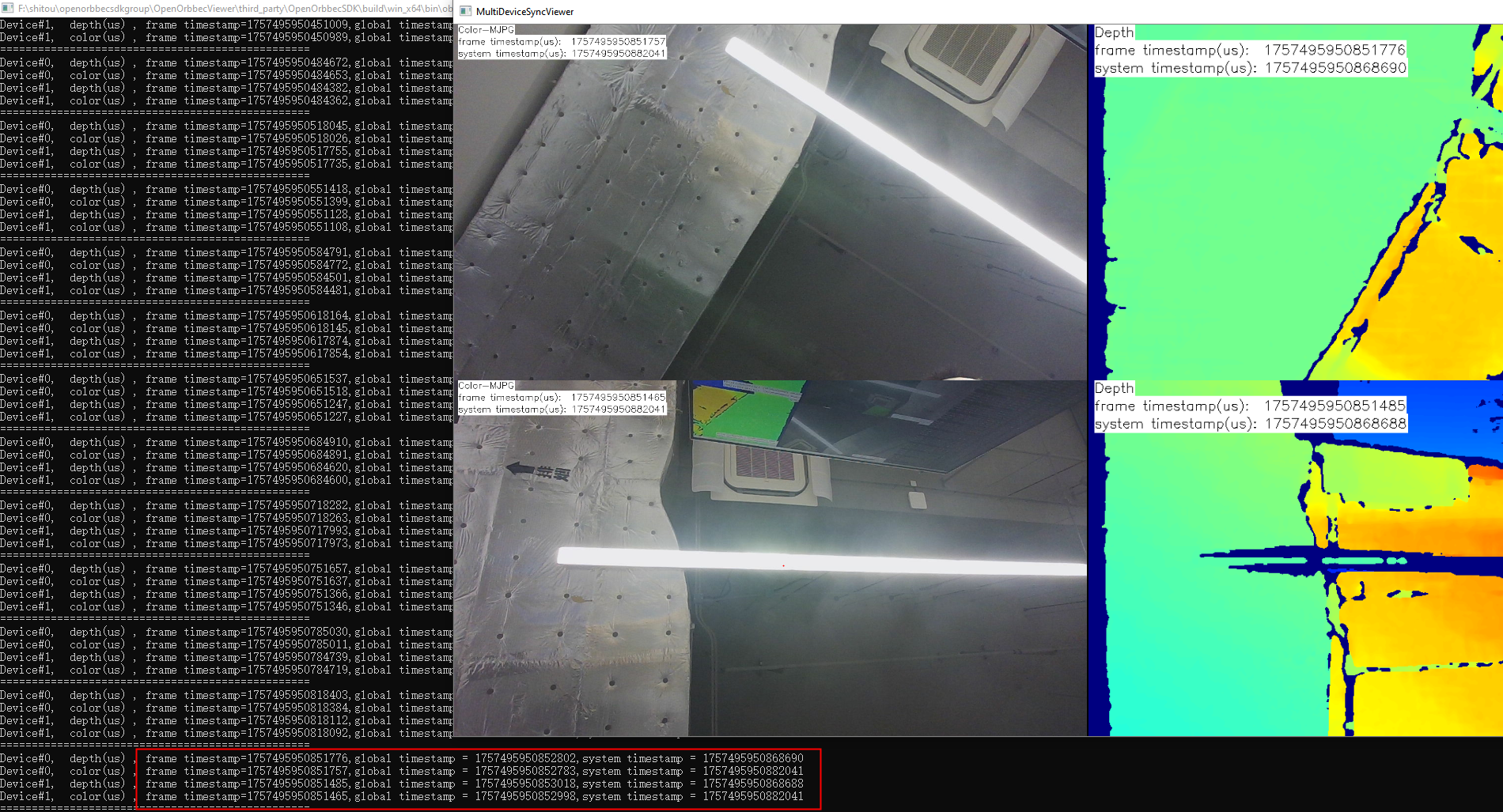

windows sync result

Observe the timestamps. As shown in the figure, the timestamps of the two devices are identical, indicating that the two devices are successfully synchronized.

Linux / ARM64

$ ./ob_multi_devices_sync

GMSL Multi-device Sync

Method 1: Multi-device sync via 8-pin port

When using the 8-pin port for multi-device synchronization, in order to ensure the quality of the synchronization signal, it is necessary to use it together with a multi-device sync hub. Please refer to the Multi-device Sync documentation.

Via the 8-pin port, GMSL multi-device sync is the same as that for USB devices, and the supported synchronization modes are also the same.

Method 2: Multi-device sync via GMSL2/FAKRA

GMSL multi-device sync via GMSL2/FAKRA is driven by a PWM trigger signal; please refer to this document. There are two usage methods:

PWM triggering requires the ob_multi_devices_sync_gmsltrigger sample (run both samples at the same time):

  1. Open the first terminal and run this sample (./ob_multi_devices_sync, enter 0 to configure the sync mode and start streaming).
  2. Open the second terminal and run the trigger sample with administrator privileges:
$ sudo ./ob_multi_devices_sync_gmsltrigger
------------------------------------------------------------
Please select options:
 0 --> config GMSL SOC hardware trigger Source. Set trigger fps:
 1 --> start Trigger
 2 --> stop Trigger
 3 --> exit
------------------------------------------------------------
input select item: 0

Enter FPS (frames per second) (for example: 3000): 3000

Recommended startup order (applies to HARDWARE_TRIGGERING and SECONDARY_SYNCED modes): start the streams first, then enable the trigger signal.

The differences between the two sync modes:

Notes: To keep this sample simple and versatile, the PWM trigger has been separated into its own sample (3.advanced.multi_devices_sync_gmsltrigger). GMSL2/FAKRA requires running two samples for testing. If you are developing your own application, you can combine these two functionalities into a single application. When exiting the trigger sample, select 3 to ensure the /dev/camsync device is properly closed.

Test Results

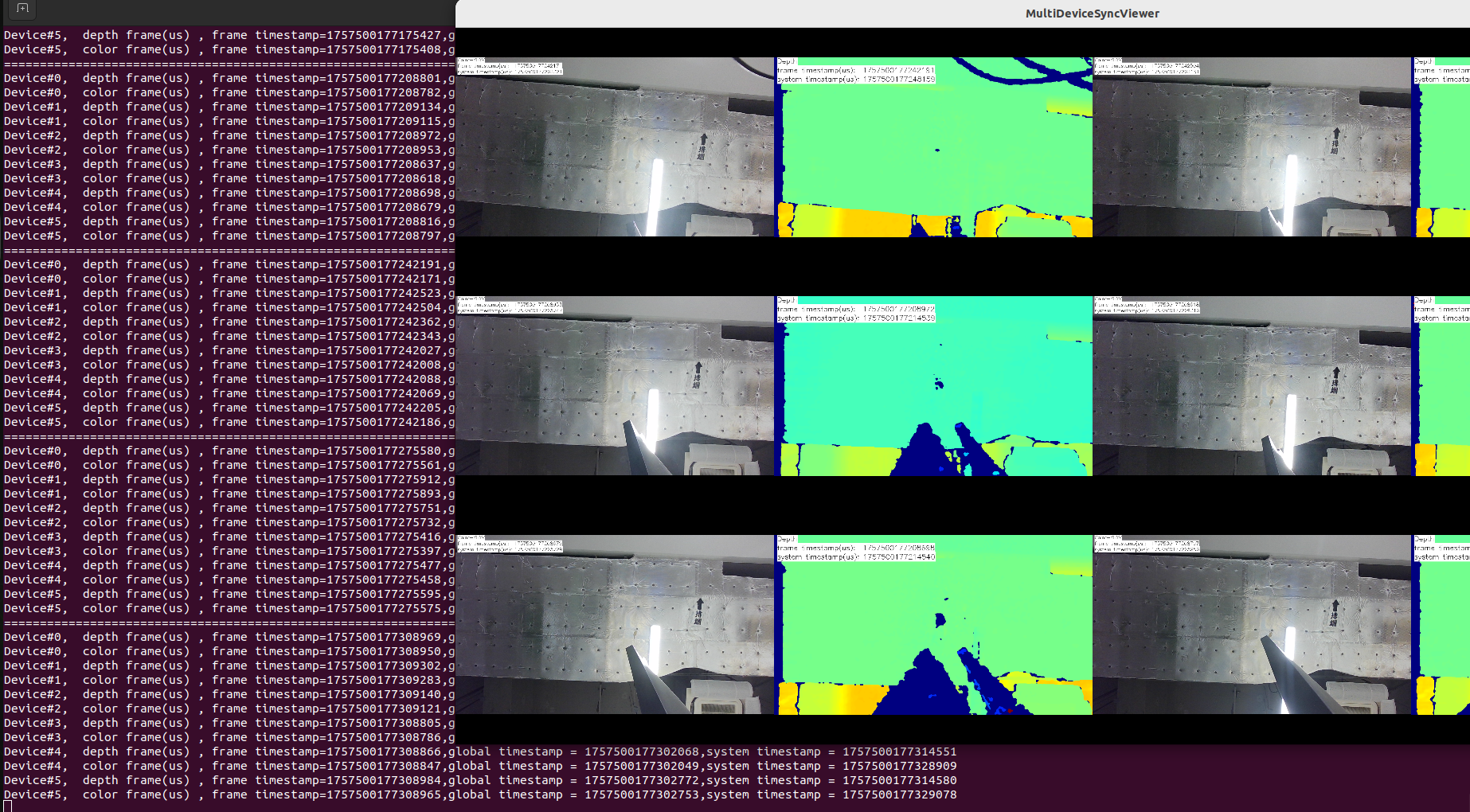

The multi-device synchronization results of six Gemini 335Lg devices on AGX Orin are as follows:

AGX Orin sync result

Timestamp CSV Output

During streaming, each device and each sensor (depth/color) records its own timestamp CSV file under ./output/:

output/
  sync_depth_dev0_<SN>.csv
  sync_color_dev0_<SN>.csv
  sync_depth_dev1_<SN>.csv
  sync_color_dev1_<SN>.csv
  ...

Each file contains one row per captured frame:

Field Description
row_id Sequential row index
sw_frame_num Software frame number from the SDK
hw_frame_num Hardware frame number; -1 when the device does not support it
system_ts_us Host system timestamp (microseconds)
device_ts_us Device-side timestamp (microseconds)
global_ts_us Global timestamp on the host clock domain (microseconds); 0 when unsupported

Note: Some devices do not provide a global timestamp (global_ts_us is all 0) or a hardware frame number (hw_frame_num is -1). This is normal and expected.

Sync Accuracy Analysis (Python)

A standalone Python script evaluates synchronization accuracy from the recorded CSV files. It performs both multi-device checks (cross-device timestamp alignment) and intra-device checks (depth-color pairing offset and frame-drop detection):

Run it from the directory containing the CSV files (typically output/):

cd bin/output
python ../analyze_sync.py

Or analyze any folder:

python analyze_sync.py /path/to/csv_dir [options]

Options:

Option Default Description
[csv_dir] current directory Directory with the sync_*.csv files
--fps auto Frame rate used to compute the grouping tolerance (half-frame interval); auto-detects from the median frame interval, falls back to 30 when there is too little data
--threshold 5000 In-group timestamp range (us) above which a matched group is flagged abnormal
--ts-source auto Time base for matching: global / device / auto (auto = global when valid, otherwise degrades to device)
--frame-num-source auto Frame number used for drop detection: hw / sw / auto (auto = hw when valid, otherwise degrades to sw)
--output <csv_dir> Base output directory; writes analysis_multi_device/ and analysis_per_device/ under it

Time base selection:

Report sections:

  1. Multi-device (per sensor, requires >= 2 devices): matched-group completeness, abnormal in-group timestamp range, and per-group matched CSV.
  2. Intra-device (per device): depth-color pairing count, global/device timestamp diff range, and per-stream dropped-frame counts (detailed drop positions go to per_device_drops.csv).

Output files and field reference:

File Location Description
sync_matched_<sensor>.csv analysis_multi_device/ One row per matched moment: group id, diffGlobalUs/diffDeviceUs (max-min across devices; empty when that time base is invalid), and each device’s frame numbers and timestamps
sync_failed_<sensor>.csv analysis_multi_device/ One row per unmatched frame (anchor that found no partner within tolerance, or a frame skipped during a match); the frame itself was captured and is present in the original CSV, with full original columns: sn, rowId, swNum, hwNum, systemUs, deviceUs, globalUs
per_device_dev<N>_<SN>.csv analysis_per_device/ One row per depth-color pair of device N: diffGlobalUs/diffDeviceUs and both frames’ numbers and timestamps
per_device_drops.csv analysis_per_device/ One row per detected dropped frame: sn, sensor, frameNumSource, missingFrameNum

CSV column meanings:

sync_matched_<sensor>.csv:

Column Description
groupId Sequential index of the matched group
diffGlobalUs Max-min spread of global_ts_us across the devices in the group; empty when the global time base is invalid
diffDeviceUs Max-min spread of device_ts_us across the devices in the group; empty when the device time base is invalid
devN_SwNum Software frame number of the matched frame on device N
devN_HwNum Hardware frame number of the matched frame on device N; -1 when the device does not support it
devN_SystemUs Host system timestamp (microseconds) of the matched frame on device N
devN_GlobalUs Global timestamp (microseconds) of the matched frame on device N
devN_DeviceUs Device-side timestamp (microseconds) of the matched frame on device N

sync_failed_<sensor>.csv:

Column Description
sn Serial number of the device the unmatched frame belongs to
rowId Row index of the frame in the original capture CSV
swNum Software frame number
hwNum Hardware frame number; -1 when the device does not support it
systemUs Host system timestamp (microseconds)
deviceUs Device-side timestamp (microseconds)
globalUs Global timestamp (microseconds)

per_device_dev<N>_<SN>.csv:

Column Description
groupId Sequential index of the depth-color pair
diffGlobalUs depthGlobalUs - colorGlobalUs (depth minus color within the device); empty when the global time base is invalid
diffDeviceUs depthDeviceUs - colorDeviceUs (depth minus color within the device); empty when the device time base is invalid
depthSwNum / colorSwNum Software frame number of the depth / color frame in the pair
depthHwNum / colorHwNum Hardware frame number of the depth / color frame in the pair; -1 when the device does not support it
depthSystemUs / colorSystemUs Host system timestamp (microseconds) of the depth / color frame
depthGlobalUs / colorGlobalUs Global timestamp (microseconds) of the depth / color frame
depthDeviceUs / colorDeviceUs Device-side timestamp (microseconds) of the depth / color frame

per_device_drops.csv:

Column Description
sn Serial number of the device the dropped frame belongs to
sensor Stream the frame belongs to (depth or color)
frameNumSource Frame-number source actually used for drop detection (hw or sw)
missingFrameNum The missing frame number detected in the sequence

Console report fields:

The script prints a summary report to the terminal. Header block:

Field Description
Data dir Directory containing the analyzed CSV files
Frame rate Frame rate used for grouping; shows how it was obtained (auto-detected from median frame interval, or a fallback value when auto-detect fails)
Threshold In-group range threshold; a matched group whose max-min timestamp range reaches this value is counted as Abnormal
Time base Timestamp source used for matching (global / device)
Frame num Frame-number source used for drop detection (hw / sw)

Per-sensor sections (========== Sensor: DEPTH / COLOR ==========):

Field Description
devN(<SN>): N frames Number of captured frames per device for this sensor
Duration Time span covered by all frames of this sensor, and the approximate average fps
Completeness Percentage of anchors that formed a complete group across all devices: groups / (groups + unmatched). Unmatched frames are present in the capture CSV but failed cross-device matching; they are not dropped frames
Abnormal (>= N us) Percentage (and count) of matched groups whose in-group timestamp range reaches the threshold
Matched CSV / Failed CSV Paths of the written CSV files for this sensor

Per-device sections (intra-device):

Field Description
ts source Time base actually used for this device’s pairing (global or device, with the degradation reason)
frame num Frame-number source used for drop detection (HW or SW)
frames Captured frame count of depth and color
pairs Number of matched depth-color pairs (unmatched = frames left without a partner)
global diff / device diff Min-max range of the depth-color timestamp difference within the device (depth - color); n/a when the time base is invalid
dropped frames Per-stream dropped-frame count and ratio; exact positions are in per_device_drops.csv
Drops CSV Path of per_device_drops.csv; only printed when dropped frames are detected
first csv row First recorded frame number per stream; a value > 1 means recording started mid-stream; those earlier frames are not counted as drops
CSV Path of the written per_device_dev<N>_<SN>.csv

Notes

  1. Femto series and Gemini 2 series sync configurations are written to Flash and persist after power-off; frequent configuration will reduce Flash lifespan. Gemini 305 and Gemini 330 sync configurations do not persist after power-off and must be reconfigured each time the device is powered on.
  2. GMSL connections do not support the MJPG format. When the color stream is configured with "format": "OB_FORMAT_MJPG" in MultiDeviceSyncConfig.json, change it to a format supported by the device (e.g. OB_FORMAT_YUYV).
  3. Exposure alignment: the timestamp reference point is controlled by the SDK property OB_PROP_INTRA_CAMERA_SYNC_REFERENCE_INT (enum OBIntraCameraSyncReference): OB_START_OF_EXPOSURE = 0, OB_MIDDLE_OF_EXPOSURE = 1, OB_END_OF_EXPOSURE = 2. For multi-device sync, OB_START_OF_EXPOSURE is recommended.
