C++ Sample: 1.stream.decimation

Overview

This sample demonstrates how to configure device preset resolutions, select sensor decimation profiles, and display the resulting streams using the SDK.

Knowledge

A StreamProfile describes the stream format, resolution, FPS, and decimation settings. Some devices (e.g. Gemini 435LE) require a preset resolution configuration to be applied before streaming.

Code overview

1. Check the device model. For specific devices (e.g., Gemini 435Le), you must configure the global preset resolution and decimation factor before selecting streams.

        // List all available presets
        for(uint32_t index = 0; index < presetNum; index++) {
            auto presetConfig = presetList->getPresetResolutionRatioConfig(index);
            std::cout << " - " << index << ". width " << presetConfig.width << ", height " << presetConfig.height << ", IR decimation "
                    << presetConfig.irDecimationFactor << ", Depth decimation " << presetConfig.depthDecimationFactor << std::endl;
        }
        // Get User Selection
        uint32_t selected = getUserInput(presetNum);

        // Apply the configuration to the device
        auto presetConfig = presetList->getPresetResolutionRatioConfig(selected);
        device->setStructuredData(OB_STRUCT_PRESET_RESOLUTION_CONFIG, (uint8_t *)&presetConfig, sizeof(presetConfig));
        std::cout << "Preset configuration applied." << std::endl;


2. Obtain and print the detailed stream profile information. For sensors supporting decimation, it displays both the current downsampled resolution and the original resolution along with the decimation factor.

        auto videoProfile = profile->as<ob::VideoStreamProfile>();
        if(!videoProfile)
            return;

        auto formatName       = profile->getFormat();
        auto width            = videoProfile->getWidth();
        auto height           = videoProfile->getHeight();
        auto fps              = videoProfile->getFps();
        auto decimationConfig = videoProfile->getDecimationConfig();

        std::cout << index << ". format: " << ob::TypeHelper::convertOBFormatTypeToString(formatName) << ", res: " << width << "*" << height << ", fps: " << fps;

        // If decimation (downsampling) is active, print origin details
        if(decimationConfig.factor != 0) {
            std::cout << ", originRes: " << decimationConfig.originWidth << "*" << decimationConfig.originHeight
                    << ", decimation factor: " << decimationConfig.factor;
        }
        std::cout << std::endl;


3. Select a stream profile and enable it in the pipeline configuration. For sensors supporting decimation, the decimation configuration can be obtained from the profile and applied to enable hardware downsampling.

        // User selects a profile (Resolution/FPS)
        std::shared_ptr<ob::StreamProfile> profile = selectStreamProfile(sensor, sensorType);

        if(profile) {
            // Enable this specific stream profile in the pipeline configuration
            config->enableStream(profile);
            std::cout << " -> Stream enabled." << std::endl;

            // support 305 decimation configuration to stream profile enabling
            // auto videoProfile     = profile->as<ob::VideoStreamProfile>();
            // auto decimationConfig = videoProfile->getDecimationConfig();
            // config->enableVideoStream(sensorType, decimationConfig);
        }


Run Sample

Follow the console prompts to input the index for preset resolution and stream profiles. Press the Esc key in the window to exit the program.

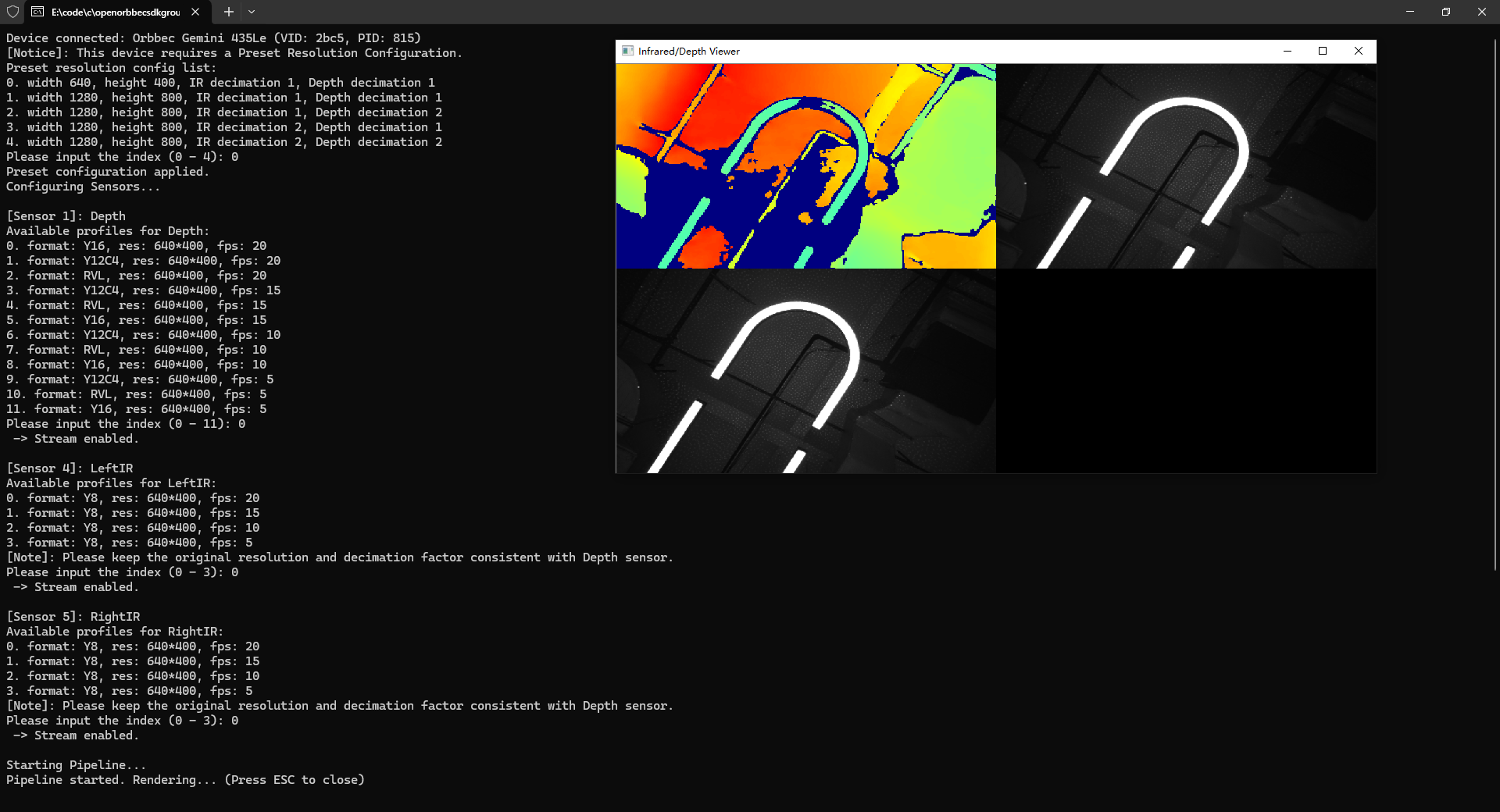

Result
